Hexagon Broaching
- Open hexagon holes, broach hexagon profiles
- Application on CNC Lathes with C Axis
- High Wear and Shock Resistance with in extended insert life and high surface quality
- Largest selection of tolerances
- Resharpening possibility
- Hardened up to 72 HRC and TIN coated
Hexagon Broaching Tools
| Broaching Tool Shaft Ø25 | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | D1 (mm) | D2 (mm) | D3 (mm) | Aligner | Screw- driver | Screw | Min. Hole Ø (mm) | Weight (g) |
| UT-HEX-9/11-25 | 30 | 129 | 9 | 90 | 25 | 8 | 30 | PN-1 | T08 | VN-1 | 9 | 0,388 |
| UT-HEX-11/17-25 | 40 | 139 | 9 | 90 | 25 | 10 | 30 | PN-1 | T08 | VN-1 | 11 | 0,368 |
| UT-HEX-17/28-25 | 56 | 155 | 9 | 90 | 25 | 15 | 30 | PN-2 | T15 | VN-2 | 17 | 0,647 |
| UT-HEX-28/37-25 | 86 | 185 | 9 | 90 | 25 | 25 | 30 | PN-3 | T20 | VN-3 | 28 | 1.390 |
| UT-HEX-37/45-25 | 126 | 225 | 9 | 90 | 25 | 35 | 45 | PN-4 | T20 | VN-3 | 37 | 1.490 |
| Shaft Ø32 | ||||||||||||
| UT-HEX-9/11-32 | 30 | 139 | 9 | 100 | 32 | 8 | 38 | PN-1 | T08 | VN-1 | 9 | 0,673 |
| UT-HEX-11/17-32 | 40 | 149 | 9 | 100 | 32 | 10 | 38 | PN-1 | T08 | VN-1 | 11 | 0,672 |
| UT-HEX-17/28-32 | 56 | 165 | 9 | 100 | 32 | 15 | 38 | PN-2 | T15 | VN-2 | 17 | 0,935 |
| UT-HEX-28/37-32 | 86 | 195 | 9 | 100 | 32 | 25 | 38 | PN-3 | T20 | VN-3 | 28 | 1.157 |
| UT-HEX-37/45-32 | 126 | 235 | 9 | 100 | 32 | 35 | 45 | PN-4 | T20 | VN-3 | 37 | 1.850 |
| UT-HEX-45/70-32 | 140 | 249 | 9 | 100 | 32 | 40 | 45 | PN-5 | BRUG 5 | VN-4 | 45 | 1.950 |

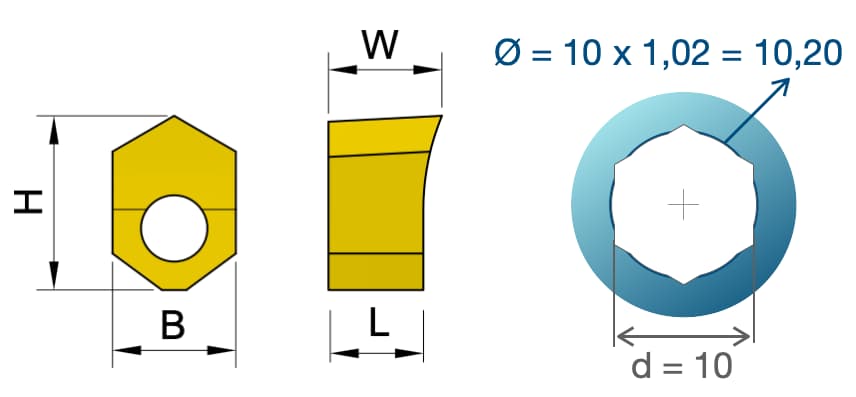

Hexagon Broaching Inserts
| Broaching Insert | Hexagon (mm) | Hexagon (inch) | L2 (mm) | L3 (mm) | L4 (mm) | L5 (mm) | Tool | Grinding Holder |
| IN-HEX-9/11 | 9-11 | 0,354/0,433 | 6 | 7 | 5 | 7,5 | UT-HEX-9/11 | RF-1 |
| IN-HEX-11/17 | 11-17 | 0,433/0,669 | 6 | 7 | 5 | 8 | UT-HEX-11/17 | RF-1 |
| IN-HEX-17/28 | 17-28 | 0,669/1,102 | 10 | 9 | 6 | 13,5 | UT-HEX-17/28 | RF-2 |
| IN-HEX-28/37 | 28-37 | 1,102/1,456 | 13 | 14 | 10 | 18,5 | UT-HEX-28/37 | RF-3 |
| IN-HEX-37/45 | 37-45 | 1,456/1,771 | 18 | 14 | 10 | 22 | UT-HEX-37/45 | RF-4 |
| IN-HEX-45/70 | 45-70 | 1,771/2,755 | 26 | 16 | 10 | 30 | UT-HEX-45/70 | RF-5 |
