Live Driven Broaching Tool for Lathes

Live Broaching Head for Lathes (Patented)

  • Broach keyway, square, hexagon, spline with one driven tool
  • Broach internal and external profiles with the same live tool
  • Perfect Symmetry: Y axis Adjustment Β±0.3
  • Longitudinal Adjustment on Z axis Β±0.3
  • Max 800 RPM (1 RPM = 1 Stroke)
  • Max Square Size: 37 mm (1.45″)
  • Max Hexagon Size: 45 mm (1.77″)

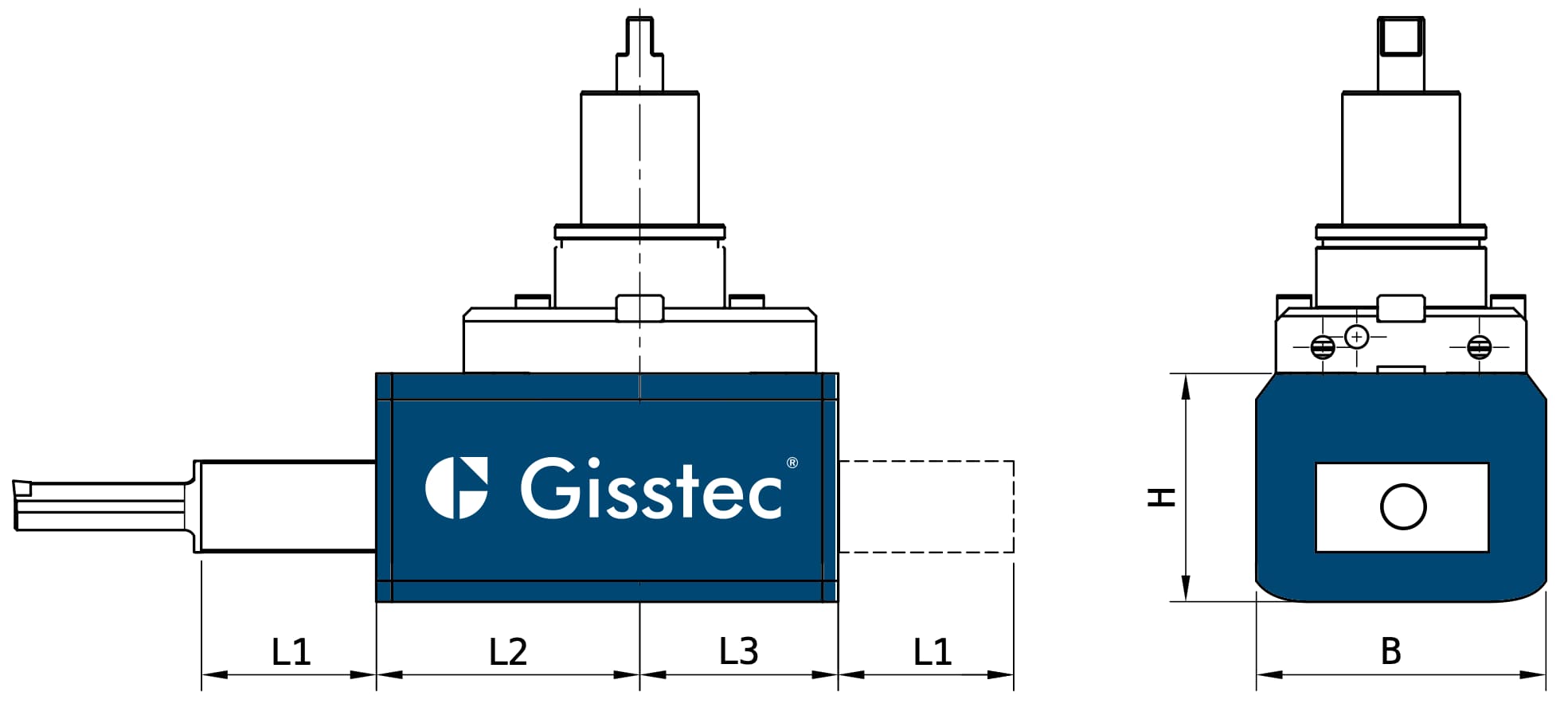

Live Broach Drawing Gisstec

Code

Stroke

Β Stroke
(inch)

L1

mm

L2

mm

L3

mm

L4

mm

L5

mm

L6

mm

NG-27

25 mm

0.98”

27

50

48

125

63

52

NG-35

33 mm

1.29”

35

76,5

76

187,5

100

95

NG-50

48 mm

1.88”

50

90,5

76

216,5

110

95

NG-65

63 mm

2.48”

65

106,5

76,5

248

125

95

Cutting Parameters

Β

Max Keyway Width

Β

Β

Material

NG-35

NG-50

NG-65

Cutting speedΒ

Cutting Depth

Aluminium

16mm

16mm

16mm

38 m/min.Β

0,06 / 0,15 mmΒ

Soft steel

14mm

14mm

14mm

33 m/min.Β

0,04 / 0,07 mmΒ

Cast iron

14mm

14mm

12mm

28 m/min.Β

0,04 / 0,07 mmΒ

Common steel

14mm

14mm

12mm

30 m/min.Β

0,03 / 0,05 mmΒ

Hardened steel

12mm

12mm

10mm

25 m/min.Β

0,02 / 0,04 mmΒ

Stainless steel

12mm

12mm

10mm

25 m/min.Β

0,02 / 0,04 mmΒ

Plastic

18mm

18mm

18mm

40 m/min.Β

0,07 / 0,15 mmΒ

Bronze, Brass

14mm

12mm

12mm

30 m/min.Β

0,03 / 0,06 mm

Approximate values in inches:
12mm 1/2″
14mm 9/16″
16mm 5/8″
