Broaching Tools for Keyway (Legacy)
Keyway Broaching Tool Shaft Ø25
| Broaching Holder |
L mm |
B mm |
H mm |
D mm |
W mm |
FPN |
T |
FVN |
Min Ø mm |
| FUT-02-25 |
25 |
9 |
55 |
25 |
6 |
FPN-03 |
T-8 |
FVN-1 |
7 |
| FUT-02-25-L |
34,5 |
9 |
55 |
25 |
6 |
FPN-03 |
T-8 |
FVN-1 |
7 |
| FUT-03-25 |
30 |
9 |
55 |
25 |
8 |
FPN-03 |
T-8 |
FVN-1 |
8,7 |
| FUT-03-25-L |
40 |
9 |
55 |
25 |
8 |
FPN-03 |
T-8 |
FVN-1 |
8,7 |
| FUT-04-25 |
40 |
9 |
55 |
25 |
10 |
FPN-03 |
T-8 |
FVN-1 |
11 |
| FUT-04-25-L |
56 |
9 |
55 |
25 |
10 |
FPN-03 |
T-8 |
FVN-1 |
11 |
| FUT-05-25 |
46 |
9 |
55 |
25 |
12 |
FPN-03 |
T-8 |
FVN-1 |
13 |
| FUT-05-25-L |
66 |
9 |
55 |
25 |
12 |
FPN-03 |
T-8 |
FVN-1 |
13 |
| FUT-06-25 |
56 |
9 |
55 |
25 |
16 |
FPN-06 |
T-15 |
FVN-2 |
17,5 |
| FUT-06-25-L |
81 |
9 |
55 |
25 |
16 |
FPN-06 |
T-15 |
FVN-2 |
17,5 |
| FUT-08-25 |
68 |
9 |
55 |
25 |
20 |
FPN-06 |
T-15 |
FVN-2 |
21,5 |
| FUT-08-25-L |
100 |
9 |
55 |
25 |
20 |
FPN-06 |
T-15 |
FVN-2 |
21,5 |
| FUT-10-25 |
86 |
9 |
55 |
25 |
25 |
FPN-10 |
T-20 |
FVN-3 |
28 |
| FUT-10-25-L |
126 |
9 |
55 |
25 |
25 |
FPN-10 |
T-20 |
FVN-3 |
28 |
| FUT-12-25 |
104 |
9 |
55 |
25 |
30 |
FPN-10 |
T-20 |
FVN-3 |
32 |
| FUT-12-25-L |
161 |
9 |
55 |
25 |
30 |
FPN-10 |
T-20 |
FVN-3 |
32 |
| FUT-14/16-25 |
126 |
9 |
55 |
25 |
35 |
FPN-14 |
T-20 |
FVN-3 |
37 |
| FUT-14/16-25-L |
180 |
9 |
55 |
25 |
35 |
FPN-14 |
T-20 |
FVN-3 |
37 |
Keyway Broaching Tool Shaft Ø32
| Broaching Holder |
L mm |
B mm |
H mm |
D mm |
W mm |
FPN |
T |
FVN |
Min Ø mm |
| FUT-02-32 |
25 |
9 |
60 |
32 |
6 |
FPN-03 |
T-8 |
FVN-1 |
7 |
| FUT-02-32-L |
34,5 |
9 |
60 |
32 |
6 |
FPN-03 |
T-8 |
FVN-1 |
7 |
| FUT-03-32 |
30 |
9 |
60 |
32 |
8 |
FPN-03 |
T-8 |
FVN-1 |
8,7 |
| FUT-03-32-L |
40 |
9 |
60 |
32 |
8 |
FPN-03 |
T-8 |
FVN-1 |
8,7 |
| FUT-04-32 |
40 |
9 |
60 |
32 |
10 |
FPN-03 |
T-8 |
FVN-1 |
11 |
| FUT-04-32-L |
56 |
9 |
60 |
32 |
10 |
FPN-03 |
T-8 |
FVN-1 |
11 |
| FUT-05-32 |
46 |
9 |
60 |
32 |
12 |
FPN-03 |
T-8 |
FVN-1 |
13 |
| FUT-05-32-L |
66 |
9 |
60 |
32 |
12 |
FPN-03 |
T-8 |
FVN-1 |
13 |
| FUT-06-32 |
56 |
9 |
60 |
32 |
16 |
FPN-06 |
T-15 |
FVN-2 |
17,5 |
| FUT-06-32-L |
81 |
9 |
60 |
32 |
16 |
FPN-06 |
T-15 |
FVN-2 |
17,5 |
| FUT-08-32 |
68 |
9 |
60 |
32 |
20 |
FPN-06 |
T-15 |
FVN-2 |
21,5 |
| FUT-08-32-L |
100 |
9 |
60 |
32 |
20 |
FPN-06 |
T-15 |
FVN-2 |
21,5 |
| FUT-10-32 |
86 |
9 |
60 |
32 |
25 |
FPN-10 |
T-20 |
FVN-3 |
28 |
| FUT-10-32-L |
126 |
9 |
60 |
32 |
25 |
FPN-10 |
T-20 |
FVN-3 |
28 |
| FUT-12-32 |
104 |
9 |
60 |
32 |
30 |
FPN-10 |
T-20 |
FVN-3 |
32 |
| FUT-12-32-L |
161 |
9 |
60 |
32 |
30 |
FPN-10 |
T-20 |
FVN-3 |
32 |
| FUT-14/16-32 |
126 |
9 |
60 |
32 |
35 |
FPN-14 |
T-20 |
FVN-3 |
37 |
| FUT-14/16-32-L |
180 |
9 |
60 |
32 |
35 |
FPN-14 |
T-20 |
FVN-3 |
37 |
| FUT-18/25-32 |
140 |
9 |
60 |
32 |
40 |
FPN-18 |
BR5 |
FVN-4 |
45 |
| FUT-18/25-32-L |
200 |
9 |
60 |
32 |
40 |
FPN-18 |
BR5 |
FVN-4 |
45 |

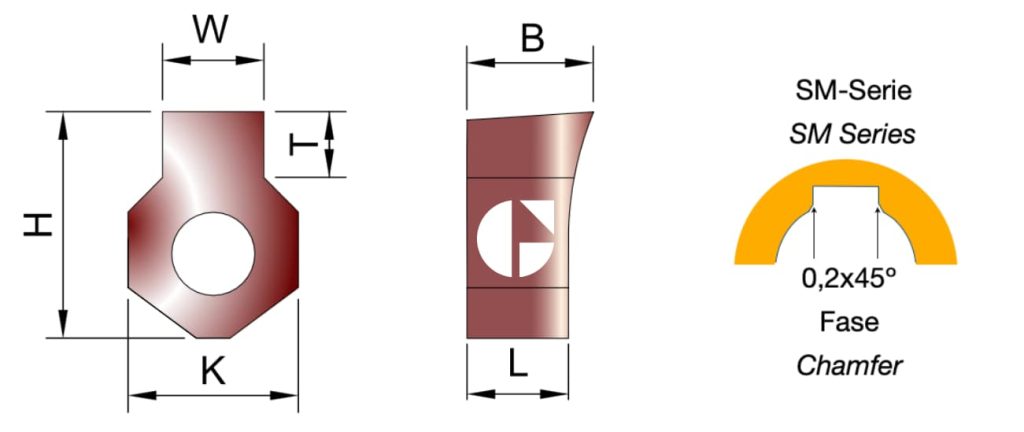

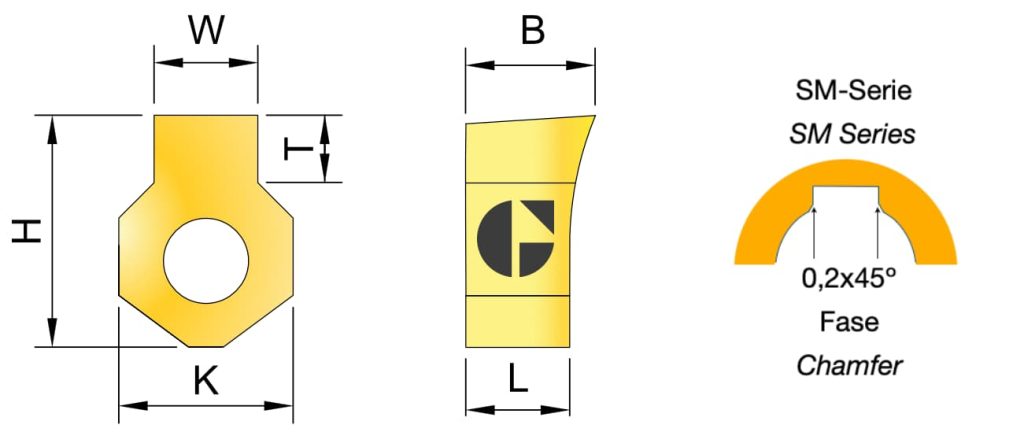

Keyway Broaching Insert in mm (Keyway Width 2 to 10)
| Broaching Insert |
W mm |
K mm |
B mm |
L mm |
H mm |
T mm |
Holder |
| FIN-02-P6/P9 |
1,994 |
5 |
6,5 |
5 |
6,5 |
1,3 |
FUT-02 |
| FIN-02-P6/P9-SM |
1,994 |
5 |
6,5 |
5 |
6,5 |
1,09 |
FUT-02 |
| FIN-02-H7/JS9 |
2,010 |
5 |
6,5 |
5 |
6,5 |
1,3 |
FUT-02 |
| FIN-02-H7/JS9-SM |
2,010 |
5 |
6,5 |
5 |
6,5 |
1,09 |
FUT-02 |
| FIN-02-D10 |
2,060 |
5 |
6,5 |
5 |
6,5 |
1,3 |
FUT-02 |
| FIN-02-C11 |
2,120 |
5 |
6,5 |
5 |
6,5 |
1,3 |
FUT-02 |
| FIN-03-P6/P9 |
2,994 |
6,08 |
6,5 |
5 |
7,5 |
2 |
FUT-03 |
| FIN-03-P6/P9-SM |
2,994 |
6,08 |
6,5 |
5 |
7,5 |
1,42 |
FUT-03 |
| FIN-03-H7/JS9 |
3,010 |
6,08 |
6,5 |
5 |
7,5 |
2 |
FUT-03 |
| FIN-03-H7/JS9-SM |
3,010 |
6,08 |
6,5 |
5 |
7,5 |
1,42 |
FUT-03 |
| FIN-03-D10 |
3,060 |
6,08 |
6,5 |
5 |
7,5 |
2 |
FUT-03 |
| FIN-03-C11 |
3,120 |
6,08 |
6,5 |
5 |
7,5 |
2 |
FUT-03 |
| FIN-04-P6/P9 |
3,988 |
6,08 |
7 |
5 |
8 |
2,6 |
FUT-04 |
| FIN-04-P6/P9-SM |
3,988 |
6,08 |
7 |
5 |
8 |
2,07 |
FUT-04 |
| FIN-04-H7/JS9 |
4,012 |
6,08 |
7 |
5 |
8 |
2,6 |
FUT-04 |
| FIN-04-H7/JS9-SM |
4,012 |
6,08 |
7 |
5 |
8 |
2,07 |
FUT-04 |
| FIN-04-D10 |
4,078 |
6,08 |
7 |
5 |
8 |
2,6 |
FUT-04 |
| FIN-04-C11 |
4,145 |
6,08 |
7 |
5 |
8 |
2,6 |
FUT-04 |
| FIN-05-P6/P9 |
4,988 |
6,08 |
7 |
5 |
8 |
3 |
FUT-05 |
| FIN-05-P6/P9-SM |
4,988 |
6,08 |
7 |
5 |
8 |
2,74 |
FUT-05 |
| FIN-05-H7/JS9 |
5,012 |
6,08 |
7 |
5 |
8 |
3 |
FUT-05 |
| FIN-05-H7/JS9-SM |
5,012 |
6,08 |
7 |
5 |
8 |
2,74 |
FUT-05 |
| FIN-05-D10 |
5,078 |
6,08 |
7 |
5 |
8 |
3 |
FUT-05 |
| FIN-05-C11 |
5,145 |
6,08 |
7 |
5 |
8 |
3 |
FUT-05 |
| FIN-06-P6/P9 |
5,988 |
10,08 |
9 |
6 |
13,5 |
4 |
FUT-06 |
| FIN-06-P6/P9-SM |
5,988 |
10,08 |
9 |
6 |
13,5 |
3 |
FUT-06 |
| FIN-06-H7/JS9 |
6,012 |
10,08 |
9 |
6 |
13,5 |
4 |
FUT-06 |
| FIN-06-H7/JS9-SM |
6,012 |
10,08 |
9 |
6 |
13,5 |
3 |
FUT-06 |
| FIN-06-D10 |
6,078 |
10,08 |
9 |
6 |
13,5 |
4 |
FUT-06 |
| FIN-06-C11 |
6,145 |
10,08 |
9 |
6 |
13,5 |
4 |
FUT-06 |
| FIN-08-P6/P9 |
7,985 |
10,08 |
9 |
6 |
13,5 |
4,5 |
FUT-08 |
| FIN-08-P6/P9-SM |
7,985 |
10,08 |
9 |
6 |
13,5 |
3,78 |
FUT-08 |
| FIN-08-H7/JS9 |
8,015 |
10,08 |
9 |
6 |
13,5 |
4,5 |
FUT-08 |
| FIN-08-H7/JS9-SM |
8,015 |
10,08 |
9 |
6 |
13,5 |
3,78 |
FUT-08 |
| FIN-08-D10 |
8,098 |
10,08 |
9 |
6 |
13,5 |
4,5 |
FUT-08 |
| FIN-08-C11 |
8,170 |
10,08 |
9 |
6 |
13,5 |
4,5 |
FUT-08 |
| FIN-10-P6/P9 |
9,985 |
13,1 |
14 |
10 |
18,5 |
6 |
FUT-10 |
| FIN-10-P6/P9-SM |
9,985 |
13,1 |
14 |
10 |
18,5 |
3,88 |
FUT-10 |
| FIN-10-H7/JS9 |
10,015 |
13,1 |
14 |
10 |
18,5 |
6 |
FUT-10 |
| FIN-10-H7/JS9-SM |
10,015 |
13,1 |
14 |
10 |
18,5 |
3,88 |
FUT-10 |
| FIN-10-D10 |
10,098 |
13,1 |
14 |
10 |
18,5 |
6 |
FUT-10 |
| FIN-10-C11 |
10,170 |
13,1 |
14 |
10 |
18,5 |
6 |
FUT-10 |
Keyway Broaching Insert in mm (Keyway Width 12 to 25)
| Broaching Insert | W mm | K mm | B mm | L mm | H mm | T mm | Holder |
| FIN-12-P6/P9 | 11,982 | 13,1 | 14 | 10 | 18,5 | 6,5 | FUT-12 |
| FIN-12-P6/P9-SM | 11,982 | 13,1 | 14 | 10 | 18,5 | 3,89 | FUT-12 |
| FIN-12-H7/JS9 | 12,018 | 13,1 | 14 | 10 | 18,5 | 6,5 | FUT-12 |
| FIN-12-H7/JS9-SM | 12,018 | 13,1 | 14 | 10 | 18,5 | 3,89 | FUT-12 |
| FIN-12-D10 | 12,120 | 13,1 | 14 | 10 | 18,5 | 6,5 | FUT-12 |
| FIN-12-C11 | 12,205 | 13,1 | 14 | 10 | 18,5 | 6,5 | FUT-12 |
| FIN-14-P6/P9 | 13,982 | 18 | 14 | 10 | 22 | 7 | FUT-14/16 |
| FIN-14-P6/P9-SM | 13,982 | 18 | 14 | 10 | 22 | 4,71 | FUT-14/16 |
| FIN-14-H7/JS9 | 14,018 | 18 | 14 | 10 | 22 | 7 | FUT-14/16 |
| FIN-14-H7/JS9-SM | 14,018 | 18 | 14 | 10 | 22 | 4,71 | FUT-14/16 |
| FIN-14-D10 | 14,120 | 18 | 14 | 10 | 22 | 7 | FUT-14/16 |
| FIN-14-C11 | 14,205 | 18 | 14 | 10 | 22 | 7 | FUT-14/16 |
| FIN-16-P6/P9 | 15,982 | 18 | 14 | 10 | 22 | 8 | FUT-14/16 |
| FIN-16-P6/P9-SM | 15,982 | 18 | 14 | 10 | 22 | 5,53 | FUT-14/16 |
| FIN-16-H7/JS9 | 16,018 | 18 | 14 | 10 | 22 | 8 | FUT-14/16 |
| FIN-16-H7/JS9-SM | 16,018 | 18 | 14 | 10 | 22 | 5,53 | FUT-14/16 |
| FIN-16-D10 | 16,120 | 18 | 14 | 10 | 22 | 8 | FUT-14/16 |
| FIN-16-C11 | 16,205 | 18 | 14 | 10 | 22 | 8 | FUT-14/16 |
| FIN-18-P6/P9 | 17,982 | 26 | 18 | 10 | 30 | 11 | FUT-18/25 |
| FIN-18-P6/P9-SM | 17,982 | 26 | 18 | 10 | 30 | 5,67 | FUT-18/25 |
| FIN-18-H7/JS9 | 18,018 | 26 | 18 | 10 | 30 | 11 | FUT-18/25 |
| FIN-18-H7/JS9-SM | 18,018 | 26 | 18 | 10 | 30 | 5,67 | FUT-18/25 |
| FIN-18-D10 | 18,120 | 26 | 18 | 10 | 30 | 11 | FUT-18/25 |
| FIN-18-C11 | 18,205 | 26 | 18 | 10 | 30 | 11 | FUT-18/25 |
| FIN-20-P6/P9 | 19,978 | 26 | 18 | 10 | 30 | 10 | FUT-18/25 |
| FIN-20-P6/P9-SM | 19,978 | 26 | 18 | 10 | 30 | 6,29 | FUT-18/25 |
| FIN-20-H7/JS9 | 20,021 | 26 | 18 | 10 | 30 | 10 | FUT-18/25 |
| FIN-20-H7/JS9-SM | 20,021 | 26 | 18 | 10 | 30 | 6,29 | FUT-18/25 |
| FIN-20-D10 | 20,149 | 26 | 18 | 10 | 30 | 10 | FUT-18/25 |
| FIN-20-C11 | 20,240 | 26 | 18 | 10 | 30 | 10 | FUT-18/25 |
| FIN-22-P6/P9 | 21,978 | 26 | 18 | 10 | 30 | 11 | FUT-18/25 |
| FIN-22-P6/P9-SM | 21,978 | 26 | 18 | 10 | 30 | 6,79 | FUT-18/25 |
| FIN-22-H7/JS9 | 22,021 | 26 | 18 | 10 | 30 | 11 | FUT-18/25 |
| FIN-22-H7/JS9-SM | 22,021 | 26 | 18 | 10 | 30 | 6,79 | FUT-18/25 |
| FIN-22-D10 | 22,149 | 26 | 18 | 10 | 30 | 11 | FUT-18/25 |
| FIN-22-C11 | 22,240 | 26 | 18 | 10 | 30 | 11 | FUT-18/25 |
| FIN-25-P6/P9 | 24,978 | 26 | 18 | 10 | 30 | 12 | FUT-18/25 |
| FIN-25-P6/P9-SM | 24,978 | 26 | 18 | 10 | 30 | 7,02 | FUT-18/25 |
| FIN-25-H7/JS9 | 25,021 | 26 | 18 | 10 | 30 | 12 | FUT-18/25 |
| FIN-25-H7/JS9-SM | 25,021 | 26 | 18 | 10 | 30 | 7,02 | FUT-18/25 |
| FIN-25-D10 | 25,149 | 26 | 18 | 10 | 30 | 12 | FUT-18/25 |
| FIN-25-C11 | 25,240 | 26 | 18 | 10 | 30 | 12 | FUT-18/25 |
Keyway Broaching Insert in inch (Keyway Width 3/32″ to 5/16″)
| Broaching Insert |
W mm |
W inch |
K inch |
B inch |
L inch |
H inch |
T inch |
Holder |
| FIN-3/32”-P6/P9 |
2.368 |
0.0932 |
0.1968 |
0.2362 |
0.1968 |
0.2559 |
0.0551 |
FUT-02 |
| FIN-3/32″-H7 |
2.391 |
0.0941 |
0.1968 |
0.2362 |
0.1968 |
0.2559 |
0.0551 |
FUT-02 |
| FIN-3/32”-D10 |
2.441 |
0.0961 |
0.1968 |
0.2362 |
0.1968 |
0.2559 |
0.0551 |
FUT-02 |
| FIN-3/32″-C11 |
2.500 |
0.0984 |
0.1968 |
0.2362 |
0.1968 |
0.2559 |
0.0551 |
FUT-02 |
| FIN-1/8”-P6/P9 |
3.158 |
0.1243 |
0.2393 |
0.2559 |
0.1968 |
0.2952 |
0.0905 |
FUT-03 |
| FIN-1/8″-H7 |
3.186 |
0.1254 |
0.2393 |
0.2559 |
0.1968 |
0.2952 |
0.0905 |
FUT-03 |
| FIN-1/8”-D10 |
3.252 |
0.1280 |
0.2393 |
0.2559 |
0.1968 |
0.2952 |
0.0905 |
FUT-03 |
| FIN-1/8″-C11 |
3.320 |
0.1307 |
0.2393 |
0.2559 |
0.1968 |
0.2952 |
0.0905 |
FUT-03 |
| FIN-5/32”-P6/P9 |
3.950 |
0.1555 |
0.2393 |
0.2755 |
0.1968 |
0.3149 |
0.1141 |
FUT-04 |
| FIN-5/32″-H7 |
3.981 |
0.1567 |
0.2393 |
0.2755 |
0.1968 |
0.3149 |
0.1141 |
FUT-04 |
| FIN-5/32”-D10 |
4.047 |
0.1593 |
0.2393 |
0.2755 |
0.1968 |
0.3149 |
0.1141 |
FUT-04 |
| FIN-5/32″-C11 |
4.113 |
0.1619 |
0.2393 |
0.2755 |
0.1968 |
0.3149 |
0.1141 |
FUT-04 |
| FIN-3/16”-P6/P9 |
4.745 |
0.1868 |
0.2393 |
0.2755 |
0.1968 |
0.3149 |
0.1299 |
FUT-05 |
| FIN-3/16″-H7 |
4.773 |
0.1879 |
0.2393 |
0.2755 |
0.1968 |
0.3149 |
0.1299 |
FUT-05 |
| FIN-3/16”-D10 |
4.839 |
0.1905 |
0.2393 |
0.2755 |
0.1968 |
0.3149 |
0.1299 |
FUT-05 |
| FIN-3/16″-C11 |
4.908 |
0.1932 |
0.2393 |
0.2755 |
0.1968 |
0.3149 |
0.1299 |
FUT-05 |
| FIN-1/4”-P6/P9 |
6.328 |
0.2491 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1587 |
FUT-06 |
| FIN-1/4″-H7 |
6.363 |
0.2505 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1587 |
FUT-06 |
| FIN-1/4”-D10 |
6.447 |
0.2538 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1587 |
FUT-06 |
| FIN-1/4″-C11 |
6.518 |
0.2566 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1587 |
FUT-06 |
| FIN-9/32”-P6/P9 |
7.123 |
0.2804 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1692 |
FUT-08 |
| FIN-9/32″-H7 |
7.158 |
0.2818 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1692 |
FUT-08 |
| FIN-9/32”-D10 |
7.242 |
0.2851 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1692 |
FUT-08 |
| FIN-9/32″-C11 |
7.313 |
0.2879 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1692 |
FUT-08 |
| FIN-5/16”-P6/P9 |
7.915 |
0.3116 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1875 |
FUT-08 |
| FIN-5/16″-H7 |
7.951 |
0.3130 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1875 |
FUT-08 |
| FIN-5/16”-D10 |
8.035 |
0.3163 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1875 |
FUT-08 |
| FIN-5/16″-C11 |
8.106 |
0.3191 |
0.3968 |
0.3543 |
0.2362 |
0.5314 |
0.1875 |
FUT-08 |
Keyway Broaching Insert in inch (Keyway Width 3/8″ to 3/4″)
| Broaching Insert |
W mm |
W inch |
K inch |
B inch |
L inch |
H inch |
T inch |
Holder |
| FIN-3/8”-P6/P9 |
9.503 |
0.3741 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.2500 |
FUT-10 |
| FIN-3/8″-H7 |
9.538 |
0.3755 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.2500 |
FUT-10 |
| FIN-3/8″-D10 |
9.622 |
0.3788 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.2500 |
FUT-10 |
| FIN-3/8″-C11 |
9.693 |
0.3816 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.2500 |
FUT-10 |
| FIN-7/16″-P6/P9 |
11.085 |
0.4364 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.2500 |
FUT-12 |
| FIN-7/16″-H7 |
11.131 |
0.4382 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.2500 |
FUT-12 |
| FIN-7/16″-D10 |
11.232 |
0.4422 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.2500 |
FUT-12 |
| FIN-7/16″-C11 |
11.316 |
0.4455 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.2500 |
FUT-12 |
| FIN-1/2″-P6/P9 |
12.673 |
0.4989 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.3000 |
FUT-12 |
| FIN-1/2″-H7 |
12.718 |
0.5007 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.3000 |
FUT-12 |
| FIN-1/2″-D10 |
12.820 |
0.5047 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.3000 |
FUT-12 |
| FIN-1/2″-C11 |
12.904 |
0.5080 |
0.5157 |
0.5511 |
0.3937 |
0.7283 |
0.3000 |
FUT-12 |
| FIN-9/16″-P6/P9 |
14.260 |
0.5614 |
0.7086 |
0.5511 |
0.3937 |
0.8661 |
0.2750 |
FUT-14/16 |
| FIN-9/16″-H7 |
14.306 |
0.5632 |
0.7086 |
0.5511 |
0.3937 |
0.8661 |
0.2750 |
FUT-14/16 |
| FIN-9/16″-D10 |
14.407 |
0.5672 |
0.7086 |
0.5511 |
0.3937 |
0.8661 |
0.2750 |
FUT-14/16 |
| FIN-9/16″-C11 |
14.491 |
0.5705 |
0.7086 |
0.5511 |
0.3937 |
0.8661 |
0.2750 |
FUT-14/16 |
| FIN-5/8″-P6/P9 |
15.848 |
0.6239 |
0.7086 |
0.5511 |
0.3937 |
0.8661 |
0.3120 |
FUT-14/16 |
| FIN-5/8″-H7 |
15.893 |
0.6257 |
0.7086 |
0.5511 |
0.3937 |
0.8661 |
0.3120 |
FUT-14/16 |
| FIN-5/8″-D10 |
15.995 |
0.6297 |
0.7086 |
0.5511 |
0.3937 |
0.8661 |
0.3120 |
FUT-14/16 |
| FIN-5/8″-C11 |
16.079 |
0.6330 |
0.7086 |
0.5511 |
0.3937 |
0.8661 |
0.3120 |
FUT-14/16 |
| FIN-3/4″-P6/P9 |
19.017 |
0.7487 |
1.0240 |
0.7086 |
0.3937 |
1.1810 |
0.3930 |
FUT-18/25 |
| FIN-3/4″-H7 |
19.071 |
0.7508 |
1.0240 |
0.7086 |
0.3937 |
1.1810 |
0.3930 |
FUT-18/25 |
| FIN-3/4″-D10 |
19.198 |
0.7558 |
1.0240 |
0.7086 |
0.3937 |
1.1810 |
0.3930 |
FUT-18/25 |
| FIN-3/4″-C11 |
19.289 |
0.7594 |
1.0240 |
0.7086 |
0.3937 |
1.1810 |
0.3930 |
FUT-18/25 |
Carbide Keyway Broaching Insert in mm (Keyway Width 2-10 mm)
| Broaching Insert | W mm | K mm | B mm | L mm | H mm | T mm | Holder |
| FIN-HM-02-P6/P9 | 1,994 | 5 | 5 | 5 | 6,5 | 1,3 | FUT-02 |
| FIN-HM-02-P6/P9-SM | 1,994 | 5 | 5 | 5 | 6,5 | 1,09 | FUT-02 |
| FIN-HM-02-H7/JS9 | 2,010 | 5 | 5 | 5 | 6,5 | 1,3 | FUT-02 |
| FIN-HM-02-H7/JS9-SM | 2,010 | 5 | 5 | 5 | 6,5 | 1,09 | FUT-02 |
| FIN-HM-02-D10 | 2,060 | 5 | 5 | 5 | 6,5 | 1,3 | FUT-02 |
| FIN-HM-02-C11 | 2,120 | 5 | 5 | 5 | 6,5 | 1,3 | FUT-02 |
| FIN-HM-03-P6/P9 | 2,994 | 6,08 | 5 | 5 | 7,5 | 2 | FUT-03 |
| FIN-HM-03-P6/P9-SM | 2,994 | 6,08 | 5 | 5 | 7,5 | 1,42 | FUT-03 |
| FIN-HM-03-H7/JS9 | 3,010 | 6,08 | 5 | 5 | 7,5 | 2 | FUT-03 |
| FIN-HM-03-H7/JS9-SM | 3,010 | 6,08 | 5 | 5 | 7,5 | 1,42 | FUT-03 |
| FIN-HM-03-D10 | 3,060 | 6,08 | 5 | 5 | 7,5 | 2 | FUT-03 |
| FIN-HM-03-C11 | 3,120 | 6,08 | 5 | 5 | 7,5 | 2 | FUT-03 |
| FIN-HM-04-P6/P9 | 3,988 | 6,08 | 5 | 5 | 8 | 2,6 | FUT-04 |
| FIN-HM-04-P6/P9-SM | 3,988 | 6,08 | 5 | 5 | 8 | 2,07 | FUT-04 |
| FIN-HM-04-H7/JS9 | 4,012 | 6,08 | 5 | 5 | 8 | 2,6 | FUT-04 |
| FIN-HM-04-H7/JS9-SM | 4,012 | 6,08 | 5 | 5 | 8 | 2,07 | FUT-04 |
| FIN-HM-04-D10 | 4,078 | 6,08 | 5 | 5 | 8 | 2,6 | FUT-04 |
| FIN-HM-04-C11 | 4,145 | 6,08 | 5 | 5 | 8 | 2,6 | FUT-04 |
| FIN-HM-05-P6/P9 | 4,988 | 6,08 | 5 | 5 | 8 | 3 | FUT-05 |
| FIN-HM-05-P6/P9-SM | 4,988 | 6,08 | 5 | 5 | 8 | 2,74 | FUT-05 |
| FIN-HM-05-H7/JS9 | 5,012 | 6,08 | 5 | 5 | 8 | 3 | FUT-05 |
| FIN-HM-05-H7/JS9-SM | 5,012 | 6,08 | 5 | 5 | 8 | 2,74 | FUT-05 |
| FIN-HM-05-D10 | 5,078 | 6,08 | 5 | 5 | 8 | 3 | FUT-05 |
| FIN-HM-05-C11 | 5,145 | 6,08 | 5 | 5 | 8 | 3 | FUT-05 |
| FIN-HM-06-P6/P9 | 5,988 | 10,08 | 6 | 6 | 13,5 | 4 | FUT-06 |
| FIN-HM-06-P6/P9-SM | 5,988 | 10,08 | 6 | 6 | 13,5 | 3 | FUT-06 |
| FIN-HM-06-H7/JS9 | 6,012 | 10,08 | 6 | 6 | 13,5 | 4 | FUT-06 |
| FIN-HM-06-H7/JS9-SM | 6,012 | 10,08 | 6 | 6 | 13,5 | 3 | FUT-06 |
| FIN-HM-06-D10 | 6,078 | 10,08 | 6 | 6 | 13,5 | 4 | FUT-06 |
| FIN-HM-06-C11 | 6,145 | 10,08 | 6 | 6 | 13,5 | 4 | FUT-06 |
| FIN-HM-08-P6/P9 | 7,985 | 10,08 | 6 | 6 | 13,5 | 4,5 | FUT-08 |
| FIN-HM-08-P6/P9-SM | 7,985 | 10,08 | 6 | 6 | 13,5 | 3,78 | FUT-08 |
| FIN-HM-08-H7/JS9 | 8,015 | 10,08 | 6 | 6 | 13,5 | 4,5 | FUT-08 |
| FIN-HM-08-H7/JS9-SM | 8,015 | 10,08 | 6 | 6 | 13,5 | 3,78 | FUT-08 |
| FIN-HM-08-D10 | 8,098 | 10,08 | 6 | 6 | 13,5 | 4,5 | FUT-08 |
| FIN-HM-08-C11 | 8,170 | 10,08 | 6 | 6 | 13,5 | 4,5 | FUT-08 |
| FIN-HM-10-P6/P9 | 9,985 | 13,1 | 10 | 10 | 18,5 | 6 | FUT-10 |
| FIN-HM-10-P6/P9-SM | 9,985 | 13,1 | 10 | 10 | 18,5 | 3,88 | FUT-10 |
| FIN-HM-10-H7/JS9 | 10,015 | 13,1 | 10 | 10 | 18,5 | 6 | FUT-10 |
| FIN-HM-10-H7/JS9-SM | 10,015 | 13,1 | 10 | 10 | 18,5 | 3,88 | FUT-10 |
| FIN-HM-10-D10 | 10,098 | 13,1 | 10 | 10 | 18,5 | 6 | FUT-10 |
| FIN-HM-10-C11 | 10,170 | 13,1 | 10 | 10 | 18,5 | 6 | FUT-10 |
Carbide Keyway Broaching Insert in mm (Keyway Width 12-25 mm)
| Broaching Insert |
W mm |
K mm |
B mm |
L mm |
H mm |
T mm |
Holder |
| FIN-HM-12-P6/P9 | 11,982 |
13,1 |
10 |
10 |
18,5 |
6,5 |
FUT-12 |
| FIN-HM-12-P6/P9-SM | 11,982 |
13,1 |
10 |
10 |
18,5 |
3,89 |
FUT-12 |
| FIN-HM-12-H7/JS9 | 12,018 |
13,1 |
10 |
10 |
18,5 |
6,5 |
FUT-12 |
| FIN-HM-12-H7/JS9-SM | 12,018 |
13,1 |
10 |
10 |
18,5 |
3,89 |
FUT-12 |
| FIN-HM-12-D10 | 12,120 |
13,1 |
10 |
10 |
18,5 |
6,5 |
FUT-12 |
| FIN-HM-12-C11 | 12,205 |
13,1 |
10 |
10 |
18,5 |
6,5 |
FUT-12 |
| FIN-HM-14-P6/P9 | 13,982 |
18 |
10 |
10 |
22 |
7 |
FUT-14/16 |
| FIN-HM-14-P6/P9-SM | 13,982 |
18 |
10 |
10 |
22 |
4,71 |
FUT-14/16 |
| FIN-HM-14-H7/JS9 | 14,018 |
18 |
10 |
10 |
22 |
7 |
FUT-14/16 |
| FIN-HM-14-H7/JS9-SM | 14,018 |
18 |
10 |
10 |
22 |
4,71 |
FUT-14/16 |
| FIN-HM-14-D10 | 14,120 |
18 |
10 |
10 |
22 |
7 |
FUT-14/16 |
| FIN-HM-14-C11 | 14,205 |
18 |
10 |
10 |
22 |
7 |
FUT-14/16 |
| FIN-HM-16-P6/P9 | 15,982 |
18 |
10 |
10 |
22 |
8 |
FUT-14/16 |
| FIN-HM-16-P6/P9-SM | 15,982 |
18 |
10 |
10 |
22 |
5,53 |
FUT-14/16 |
| FIN-HM-16-H7/JS9 | 16,018 |
18 |
10 |
10 |
22 |
8 |
FUT-14/16 |
| FIN-HM-16-H7/JS9-SM | 16,018 |
18 |
10 |
10 |
22 |
5,53 |
FUT-14/16 |
| FIN-HM-16-D10 | 16,120 |
18 |
10 |
10 |
22 |
8 |
FUT-14/16 |
| FIN-HM-16-C11 | 16,205 |
18 |
10 |
10 |
22 |
8 |
FUT-14/16 |
| FIN-HM-18-P6/P9 | 17,982 |
26 |
10 |
10 |
30 |
11 |
FUT-18/25 |
| FIN-HM-18-P6/P9-SM | 17,982 |
26 |
10 |
10 |
30 |
5,67 |
FUT-18/25 |
| FIN-HM-18-H7/JS9 | 18,018 |
26 |
10 |
10 |
30 |
11 |
FUT-18/25 |
| FIN-HM-18-H7/JS9-SM | 18,018 |
26 |
10 |
10 |
30 |
5,67 |
FUT-18/25 |
| FIN-HM-18-D10 | 18,120 |
26 |
10 |
10 |
30 |
11 |
FUT-18/25 |
| FIN-HM-18-C11 | 18,205 |
26 |
10 |
10 |
30 |
11 |
FUT-18/25 |
| FIN-HM-20-P6/P9 | 19,978 |
26 |
10 |
10 |
30 |
10 |
FUT-18/25 |
| FIN-HM-20-P6/P9-SM | 19,978 |
26 |
10 |
10 |
30 |
6,29 |
FUT-18/25 |
| FIN-HM-20-H7/JS9 | 20,021 |
26 |
10 |
10 |
30 |
10 |
FUT-18/25 |
| FIN-HM-20-H7/JS9-SM | 20,021 |
26 |
10 |
10 |
30 |
6,29 |
FUT-18/25 |
| FIN-HM-20-D10 | 20,149 | 26 | 10 | 10 | 30 |
10 |
FUT-18/25 |
| FIN-HM-20-C11 | 20,240 | 26 | 10 | 10 | 30 |
10 |
FUT-18/25 |
| FIN-HM-22-P6/P9 | 21,978 | 26 | 10 | 10 | 30 |
11 |
FUT-18/25 |
| FIN-HM-22-P6/P9-SM | 21,978 | 26 | 10 | 10 | 30 |
6,79 |
FUT-18/25 |
| FIN-HM-22-H7/JS9 | 22,021 | 26 | 10 | 10 | 30 |
11 |
FUT-18/25 |
| FIN-HM-22-H7/JS9-SM | 22,021 | 26 | 10 | 10 | 30 |
6,79 |
FUT-18/25 |
| FIN-HM-22-D10 | 22,149 | 26 | 10 | 10 | 30 |
11 |
FUT-18/25 |
| FIN-HM-22-C11 | 22,240 | 26 | 10 | 10 | 30 |
11 |
FUT-18/25 |
| FIN-HM-25-P6/P9 | 24,978 | 26 | 10 | 10 | 30 |
12 |
FUT-18/25 |
| FIN-HM-25-P6/P9-SM | 24,978 | 26 | 10 | 10 | 30 |
7,02 |
FUT-18/25 |
| FIN-HM-25-H7/JS9 | 25,021 | 26 | 10 | 10 | 30 |
12 |
FUT-18/25 |
| FIN-HM-25-H7/JS9-SM | 25,021 | 26 | 10 | 10 | 30 |
7,02 |
FUT-18/25 |
| FIN-HM-25-D10 | 25,149 | 26 | 10 | 10 | 30 |
12 |
FUT-18/25 |
| FIN-HM-25-C11 | 25,240 | 26 | 10 | 10 | 30 |
12 |
FUT-18/25 |
Square Broaching Tools
Hexagon Broaching Tools
Spline Broaching Tools
Broaching Tool Kits
Live Slotting Tools
Angle Heads
Tags: broach, broaching, broaching tools, slotting, slotting tools, keyway, square, hexagon, lathe, turning machine, machining centre, machining center, slotting machine, broaching machine
